Korloy Coating Steel Inserts for Cutting Ccmt120404-Hmp Nc3030

Specifications:CCMT120404-HMP NC3030

Paihao:NC3030

Keywords:Steel Insert,Inserts for ,Coating Inserts,Steel Inserts,Cutting Inserts,Hmp Inserts,Ccmt Inserts

Korloys coating Steel Inserts for cutting Ccmt120404-Hmp Nc3030Product DescriptionFeaturesDescriptio

Inquiry

Korloys coating Steel Inserts for cutting Ccmt120404-Hmp Nc3030

Product Description

Features

DescriptionValue
Technical product number1-02-026206
Identifying order numberCCMT120404-HMP NC3030
Company codeKOR - Korloy
Standard number of properties layoutDIN4000-76
Tool style code3
Insert included angle80 Degree
Clearance angle major7 Degree
Cutting edge length12.9 mm
Inscribed circle diameter12.7 mm
Insert thickness4.76 mm
Corner radius0.4 mm
Weight of item0.0079 kg
Chip breaker face count1 - With chip breaker one-side
Chip breaker manufacturers designationHMP
Insert handN - Neutral
Tolerance class insertM
Insert thickness total4.76 mm
Insert mounting style code3 - Counter bore for screws with taper angle from 40° to 60°
Fixing hole diameter5.5 mm
Standard designation of the grade, main applicationCarbide
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationNC3030
CoatingCoated
ISO property0
Standard designationCCMT120404
Standard designation ANSICCMT431

NC3030
P25-P35
-General cutting, interrupted cuts and rough cuts on steel and stainless steel.
-Hard taikin subscture resistance combined with microchipping resistant and heat resistant AL2O3 layer improves stability and wide machining range.
-MT-TiCN+TiC+AL2O3+TiN

Specifications Details

ModelCCMT120404-HMP NC3030
Brand NameKORLOYS
Place of OriginSouth Korea
CoatingPVD CVD
Processing MaterialSTAINLESS STEEL
Packageoriginal plastic box
MOQ10PCS
ApplicationExternal turning work on metal material
Delivery time Short
TransportTNT\DHL\ FedEx\ EMS\ UPS
PaymentL/C T/T D/P Western Union/ Paypal

Main Products

Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

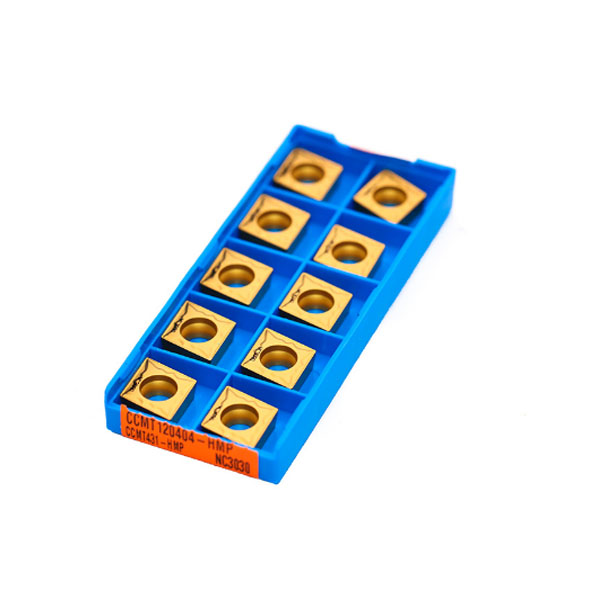

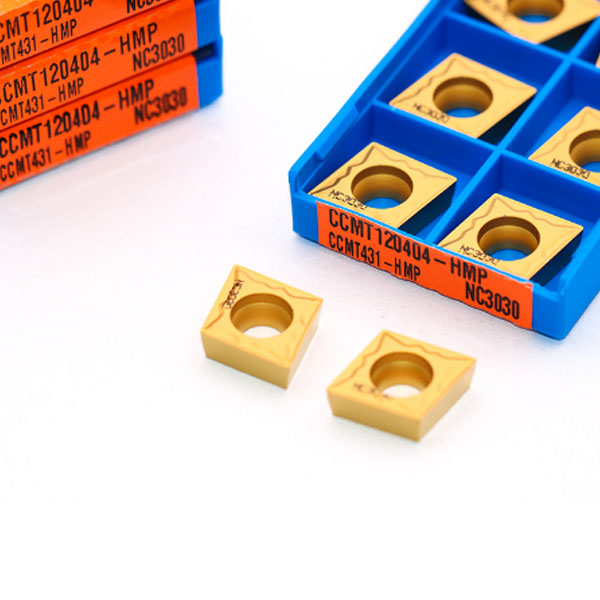

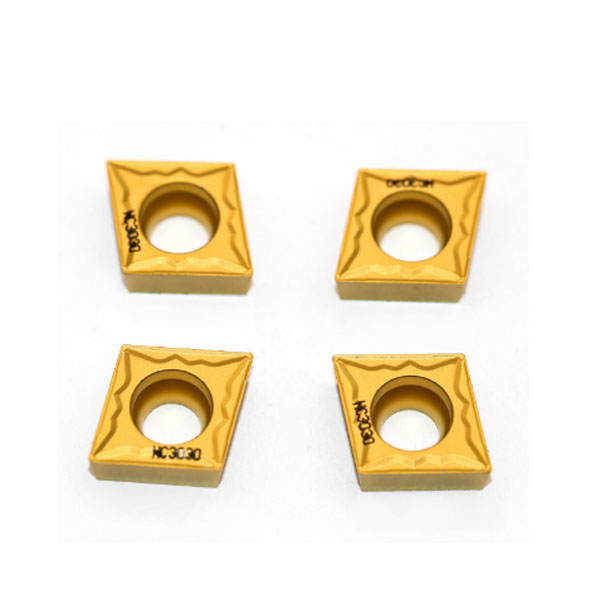

Detailed Photos

Detailed Photo





Packaging & Shipping

Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tape
Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.

FAQ

FAQ:
1.Why customers choose us ?
We can supply products with very high efficiency and very competitive prices.
There are some qty in stock.
There are many famous brands we are selling.
2.If our products are original imported ?
Yes.We promise our products are 100% original.
3. Do you provide after-sales service?
Yes. So if you find any problems after using our cutting tools, please feel free to tell us and we will help you solve it as soon as possible. Any feedback you have about the product is our way to improve.
4. How can I pay for my purchase?
 T/T, Paypal, Escrow, L/C, Western Union.
5. How long is our order delivery time?
Almost most of the goods can be shipped within a week.
