High Toughness Blades Boring Insert Ccmt09t304 Mt Tt8020

Specifications:CCMT09T304 MT TT8020

Paihao:TT8020

Keywords:High Toughness Inserts,Boring Blade Inserts,boring inserts,Ccmt09t304 Mt Tt8020,Ccmt Inserts,Ccmt Blade,Boring Blade,Tough Insert,Tough Blade,Boring Blades

High toughness blades boring Insert Ccmt09t304 Mt Tt8020Product DescriptionFeaturesB12P/M/STT8020TT

Inquiry
High toughness blades boring  Insert Ccmt09t304 Mt Tt8020
Product Description
Features
B12P/M/STT8020TT8020 The toughest PVD grade for intermittent machining of stainless steel, steel and high temperature alloys.
DescriptionValue
Technical product number5515704
Identifying order numberCCMT 09T304 MT TT8020
Company codeIL - Ingersoll
Standard number of properties layoutDIN4000-76
Tool style code3
Insert included angle80 Degree
Clearance angle major7 Degree
Cutting edge length9.2 mm
Inscribed circle diameter9.52 mm
Insert thickness3.97 mm
Corner radius0.4 mm
Chip breaker face count0 - Without chip breaker
Cutting edge effective length1.5 mm
Insert handN - Neutral
Tolerance class insertM
Insert thickness total3.97 mm
Insert mounting style code3 - Counter bore for screws with taper angle
Fixing hole diameter4.4 mm
Standard designation of the grade, main applicationP30-P50
Standard designation of the grade, 2nd applicationM30-M50
Standard designation of the grade, 3rd applicationS30-S50
Grade manufacturer's designationTT8020
CoatingTiCN
ISO property0
Standard designationCCMT09T304
Standard designation ANSICCMT32.51

Specifications Details
ModelCCMT09T304  MT  TT8020
Brand NameTaegutecs
Place of OriginSouth Korea
CoatingPVD CVD
Processing MaterialStainless, superalloy and mild steel
Packageoriginal plastic box
MOQ10PCS
ApplicationExternal turning work on metal material
Delivery time Short
TransportTNT\DHL\ FedEx\ EMS\ UPS
PaymentL/C T/T D/P Western Union/ Paypal

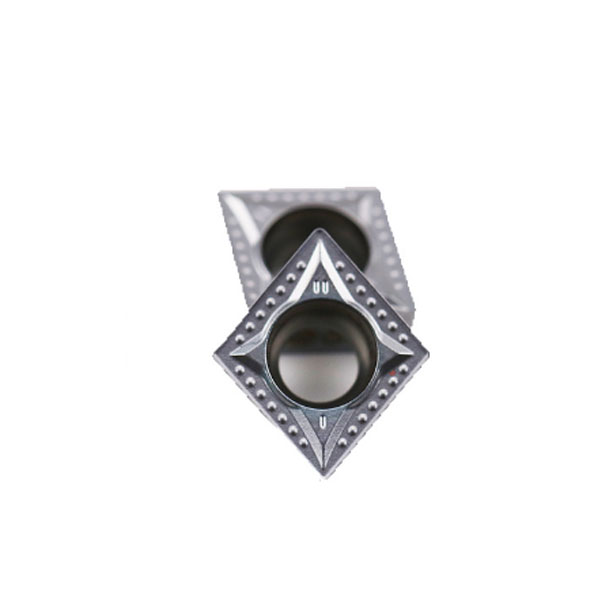

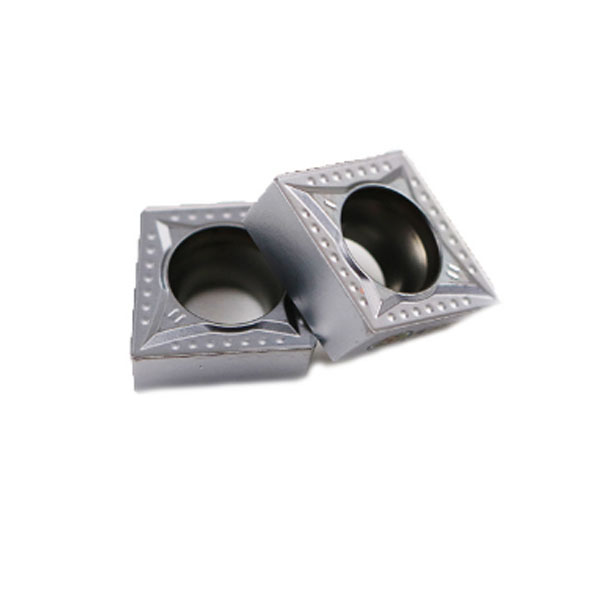

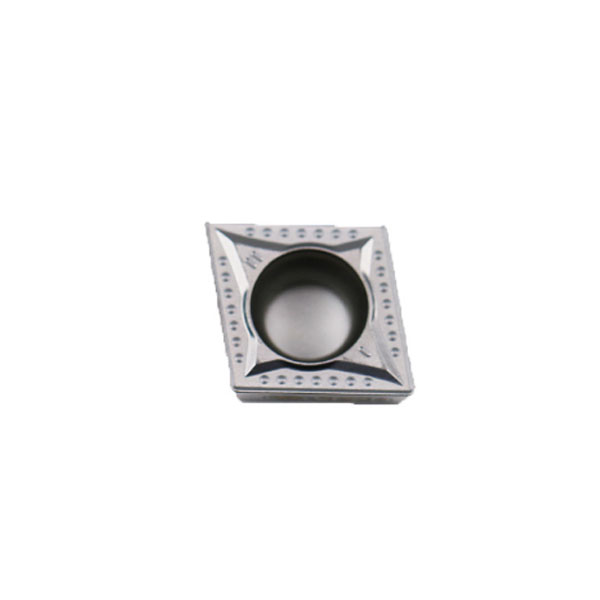

Detailed Photos
Detailed Photos

Packaging & Shipping

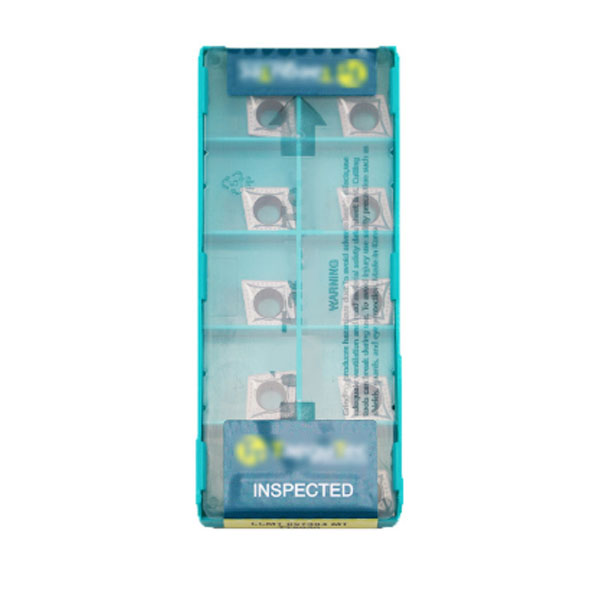

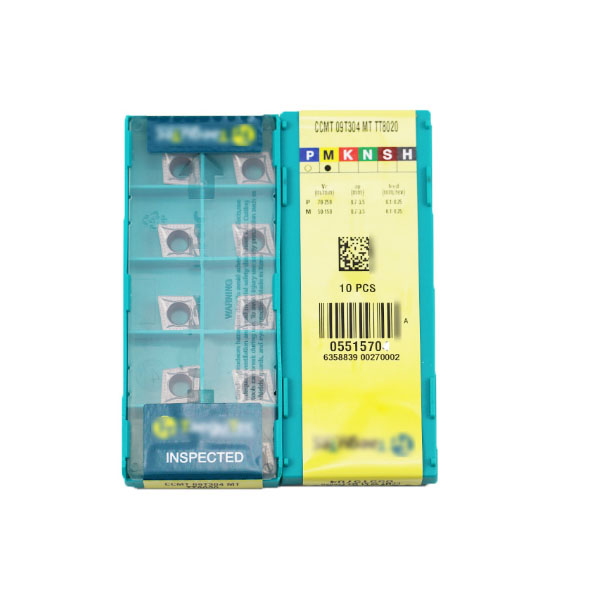

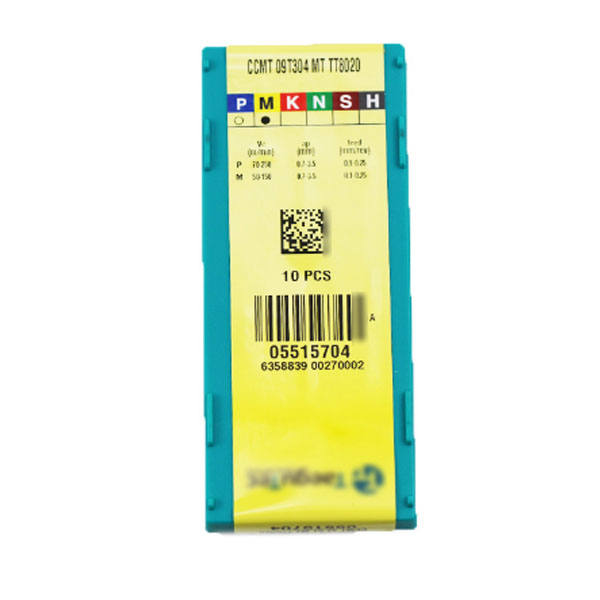

Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tape

Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.Payment and delivery

FAQ

FAQ:
1.Why customers choose us ?
We can supply products with very high efficiency and very competitive prices.
There are some qty in stock.
There are many famous brands we are selling.
2.If our products are original imported ?
Yes.We promise our products are 100% original.
3. Do you provide after-sales service?
Yes. So if you find any problems after using our cutting tools, please feel free to tell us and we will help you solve it as soon as possible. Any feedback you have about the product is our way to improve.
4. How can I pay for my purchase?
 T/T, Paypal, Escrow, L/C, Western Union.
5. How long is our order delivery time?
Almost most of the goods can be shipped within a week.
