Zcc Square Turning Inserts Snmm190616-Dr Ybc251 Steel Processing

Specifications:SNMM190616-DR YBC251

Paihao: YBC251

Keywords:Zcc Insert,Turning Insert,Steel Process inserts,Square Insert,Machine Tool inserts,Cutting Tool,Carbide Insert

ZCC.CT Square Turning Blade SNMM190616-DR YBC251 Steel ProcessingProduct DescriptionSpecificati

Inquiry

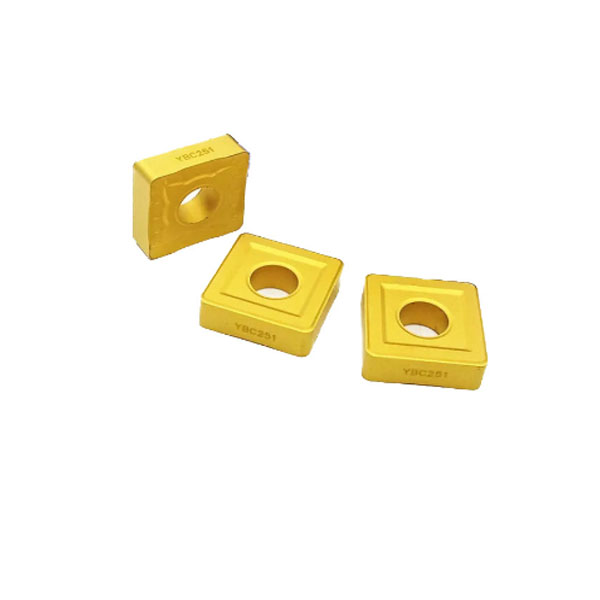

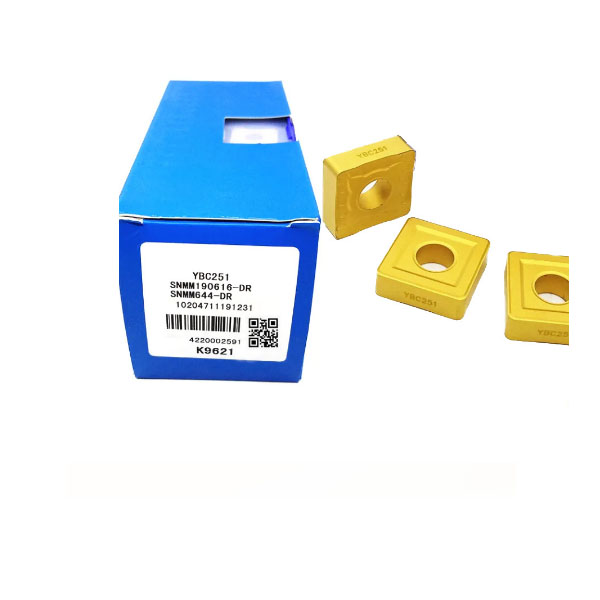

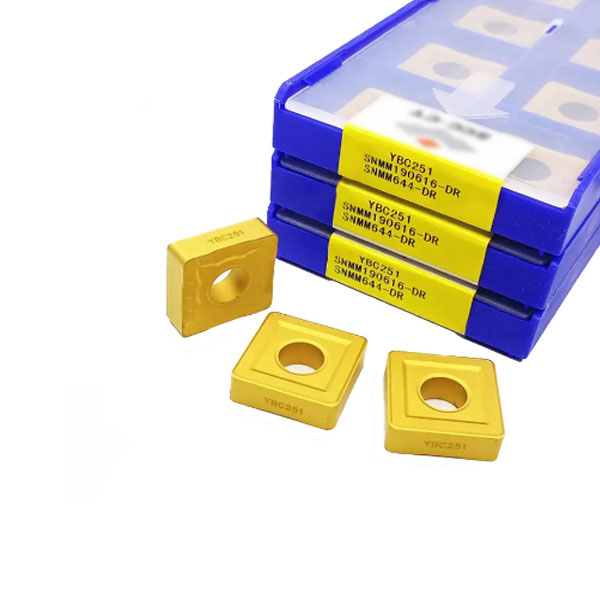

ZCC.CT Square Turning Blade SNMM190616-DR YBC251 Steel Processing

Product Description

Specifications Details
Key attributes

Double-sided DR
P class, K class material light load rough processing recommended groove
M class double-sided chip breaker, light load rough machining preferred groove, metal removal rate and cutting edge economy can be both.

Excellent combination of toughness matrix with MT-TiCN, thick Al2O3, TiN coating
with good cutting edge safety; Suitable for semi-finishing of steel.
Industry-specific attributes

UseExternal Turning Tool
CoatingPVD CVD

Other attributes

Place of OriginJinan, China
Warrantyno
Customized supportOEM, ODM
Brand NameZCC.CT
Model NumberSNMM190616-DR YBC251
Packaging and delivery
Selling Units:Single item
Single package size:14X6X2 cm
Single gross weight:0.030 kg


DescriptionValue
Identifying order numberSNMM190616-DR YBC251
Company codeZCC - ZCC Cutting Tools
Standard number of properties layoutDIN4000-76
Tool style code2
Insert included angle90 Degree
Clearance angle major0 Degree
Cutting edge length19.05 mm
Inscribed circle diameter19.05 mm
Insert thickness6.35 mm
Corner radius1.6 mm
Chip breaker manufacturers designationDR
Insert handN - Neutral
Tolerance class insertM
Insert thickness total6.35 mm
Insert mounting style code2 - With cylindrical bore
Fixing hole diameter7.94 mm
Standard designation of the grade, main applicationP10-P30
Grade manufacturer's designationYBC251
CoatingMT-TiCN,Al2O3,TiN
ISO property0

Main Products:

Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

Main Famous brand:
 Material Grades List:

NO.

Material

YBC151

High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.

YBC152

Thick TiCN and Al2O3 coating

YBC251

Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBC252

Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBC351

Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBG102

Nc-TiAN coating and fine-grained matrix.

YBG202

Nc-TiAN coating and fine-grained matrix.

YBG205

Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.

YBG302

Nc-TiAN coating and flexible cemented carbide matrix.

YBM151

Special organizational structure and TiCN, thin Al2O3 and TiN coating.

YBM251

Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.

YBM253

With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix.

YBD052

CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.

YBD102

CVD coating (thick Al2O3 & thick TiCN) , hard matrix.

YBD152

CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.

YBD252

CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.

YNG151

Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design.

YNG151C

Physics weather deposit (PVD) coating, high toughness ceramal matrix.

YD101

Fine particle hardness phase WC and bond phase Co.

YD201

Middle particle hardness phase WC and bond phase Co.
